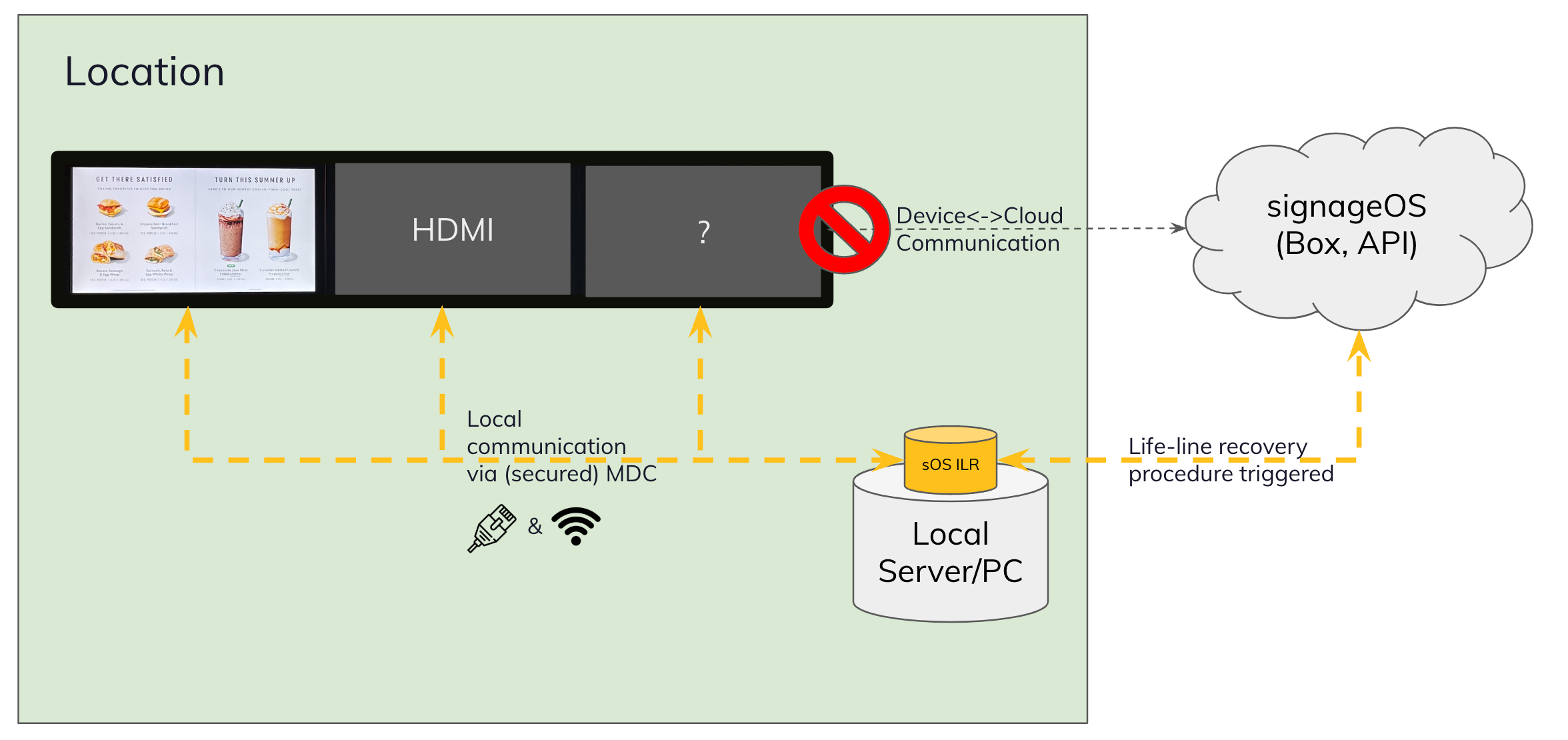

In-Location Recovery (ILR) enables to use low-level display control to recover SoC displays from unexpected state. It's especially useful for locations with higher density of displays and business critical deployments where displays uptime is of utmost importance.
In-Location Recovery works as redundant displays manager that can be used to prevent unneccessary truck rolls.
How to deploy
ILR setup
- Install signageOS Core App for Ubuntu Linux on a PC/VM of your choice
- Locate the PC/VM physically in the same network as your SoC displays
- Ensure displays and PC can communicate over the local network
- [Tizen] Ensure displays have Network Standby option set to On
signageOS setup
- Provision signageOS Core App for Linux
- Assign it to a Location with the rest of SoC displays

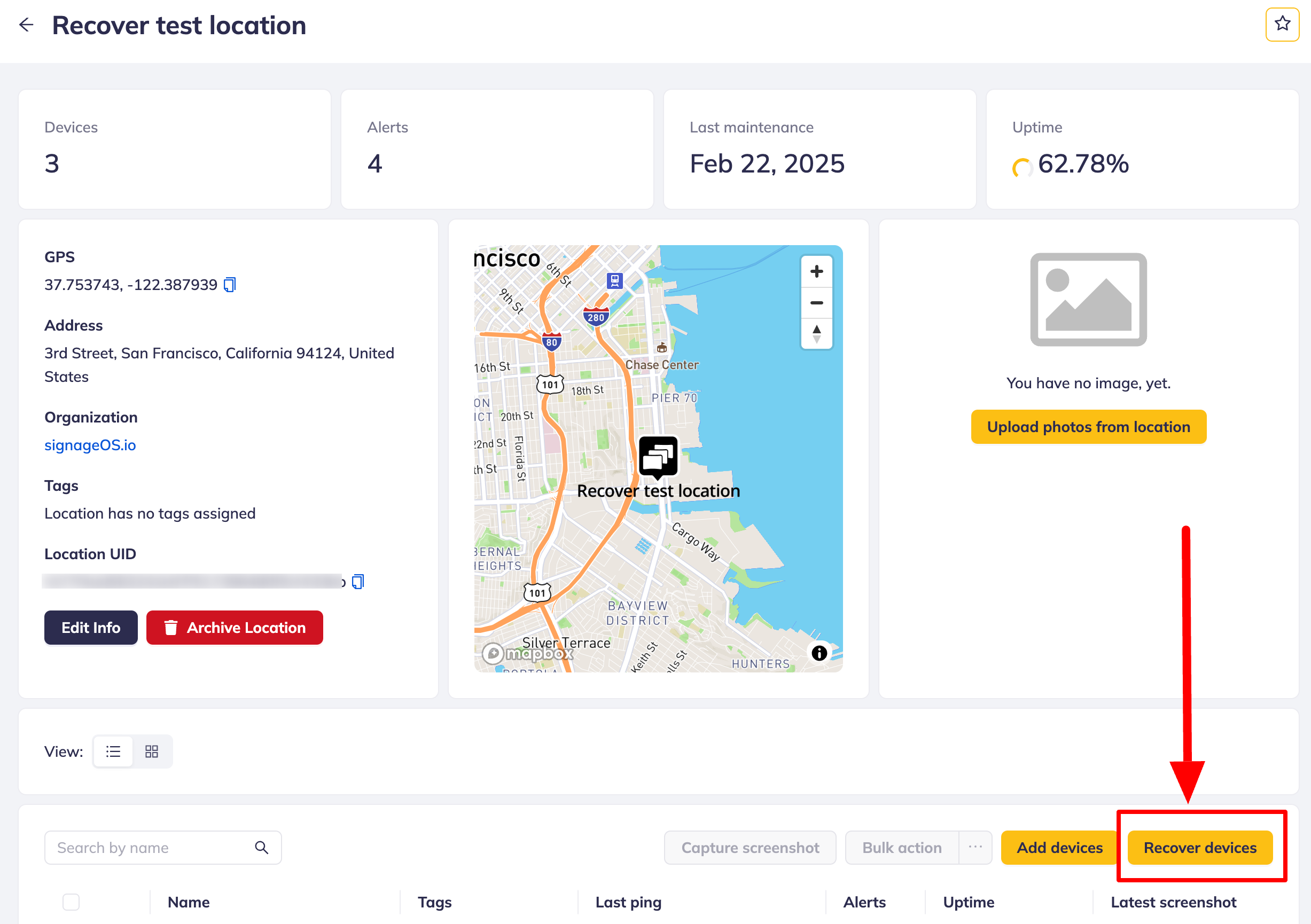

- You will see Recover devices button on the Location detail page
How to recover displays with ILR
Once you run into an issue with the SoC display (it's powered off, switched on wrong input source or otherwise unavailable), follow these steps:
Box
- In Box, navigate to Location with malfunctioning displays
- Click Recover devices button
- See list of devices available for recovery

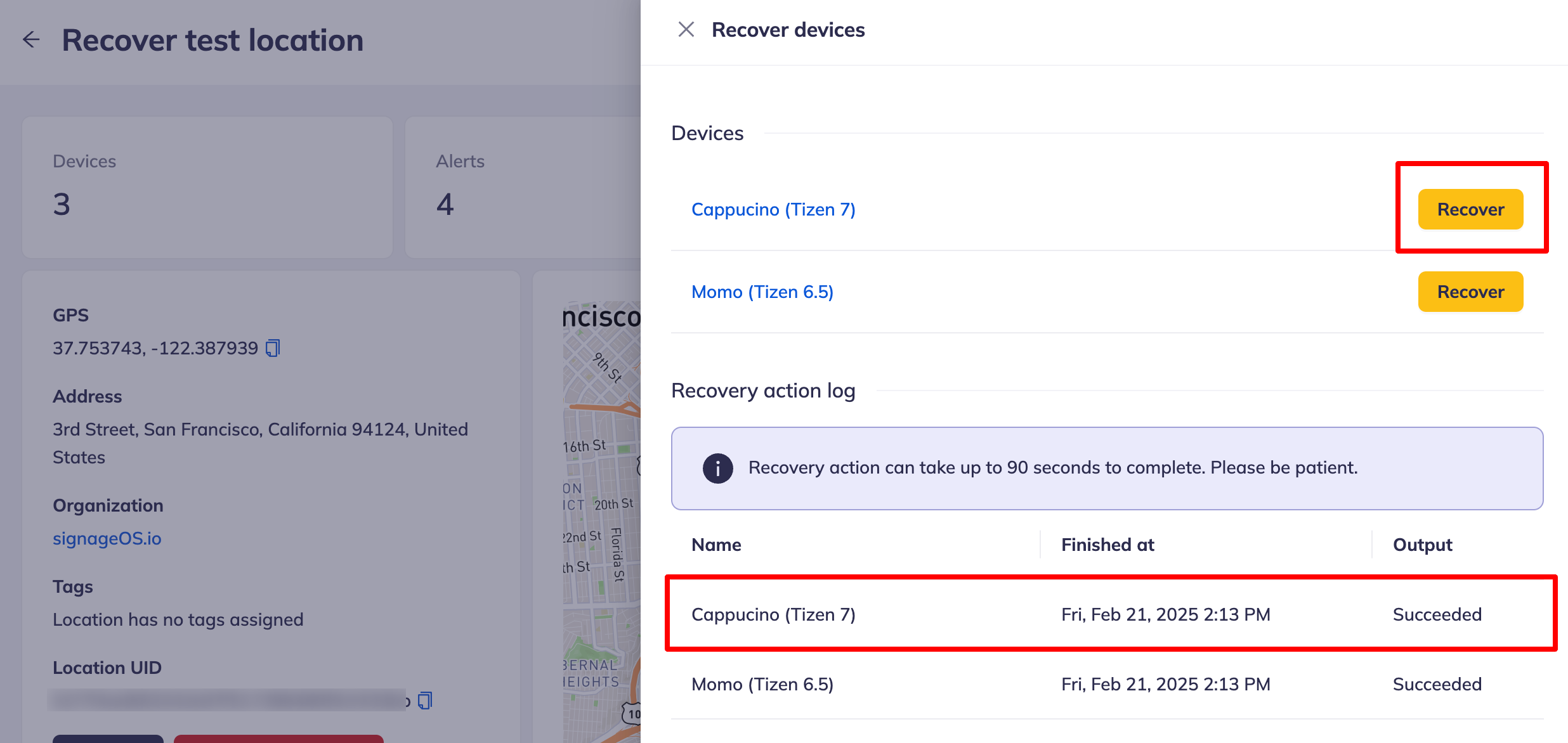

- Click Recover for a given device
- Check for confirmation of the action (can take up to 90 seconds)
FAQ
Which devices can be recovered?
Currently ILR supports only Samsung displays. LG displays will follow.
Is there any specific network setup?
For Samsung displays you have to enable communication on port 1515.
Is there REST API?
REST API will be provided in a future release.
