Supported Streaming Protocols

Have more questions? Submit a request

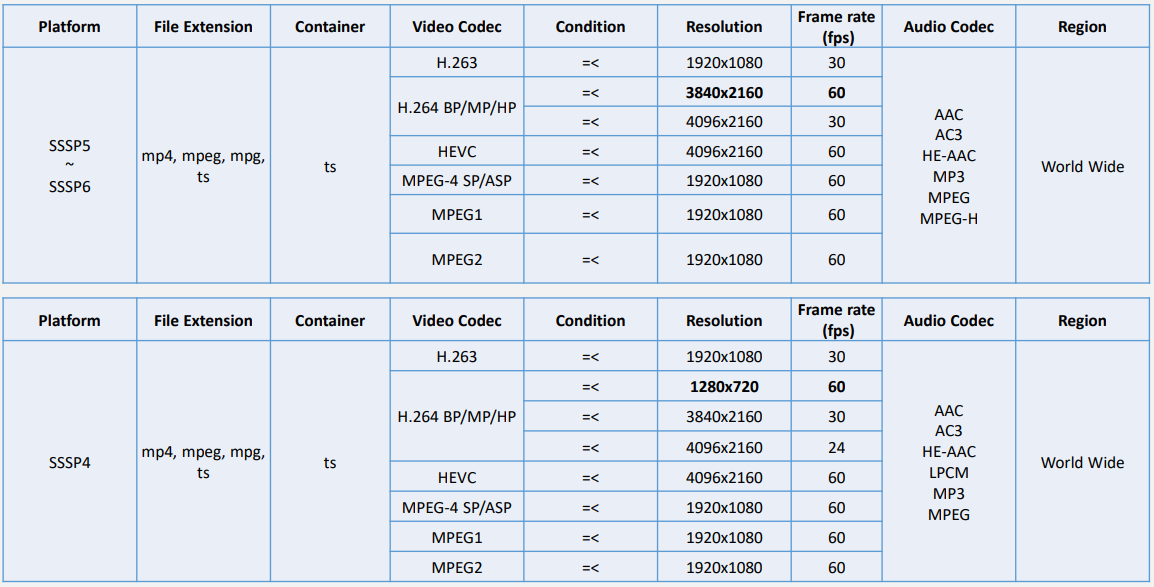

Samsung SSSP4 - SSSP6

Are you using Samsung Tizen to play streams? Read more about limitation and Tizen-specific details.


Supported streaming protocols by Samsung SSSP 4/5/6 are:

  • RTP/UDP
  • Smooth Streaming
  • MPEG DASH
  • HLS
  • HTTP

Please note: Url to stream RTP and UDP content must be rtp:// and udp:// .

Note
To be able to play video stream in UHD resolution on Tizen device you have stream .ts files without transcodingRead more here.

LG webOS 3, 3.2 and 4.0

Protocol Media Container Video Codec Audio Codec
HLS V3 TS H.264 MP3, AAC, AC-3
UDP TS MPEG-2, H.264 MPEG-1 layer 1 & 2, MPEG-1 layer 3, AAC, AC-3
MP4 H.264 MPEG-1 layer 1 & 2, MPEG-1 layer 3, AAC, AAC-3
RTP TS MPEG-2 MPEG-1
MKV H.264 MPEG-1 AC-
MP4 H.264 MP3, AC-3, AAC
RTSP TS MPEG-1 & 2, MPEG-4, H.264 MPEG-1 layer 1 & 2, MPEG-1 layer 3, AAC
M4E MPEG-4

LG webOS 2

Protocol Media Container Video Codec Audio Codec
HLS V3 TS H.264 MP3, AAC, AC-3
UDP TS MPEG-2, H.264 MPEG-1 layer 1 & 2, MPEG-1 layer 3, AAC, AC-3
MP4 H.264 MPEG-1 layer 1 & 2, MPEG-1

BrightSign

BrightSign supports UDP/RTP, HTTP and HLS streaming. More over here: List of supported streaming protocols by BrightSign

Raspberry PI

RPi supports UDP, RTSP, HLS and HTTP stream. Recommended formats as below:

Supported File Type(s) / Container Formats Video Format / Codec Audio Codec
MP4 H.264, HighProfile up to 4.1 AAC

Unicast streaming on the RPi is using the following URL scheme:
udp://@:PORT

Android

The following network protocols are supported for audio and video playback:

  • RTSP (RTP, SDP)
  • HTTP/HTTPS

For video content that is streamed over HTTP or RTSP, there are additional requirements:

  • For 3GPP and MPEG-4 containers, the moov atom must precede any mdat atoms, but must succeed the ftyp atom.
  • For 3GPP, MPEG-4, and WebM containers, audio and video samples corresponding to the same time offset may be no more than 500 KB apart. To minimize this audio/video drift, consider interleaving audio and video in smaller chunk sizes.

Chrome & Chromium / Emulator

You can use HTTP streaming only within emulator.
